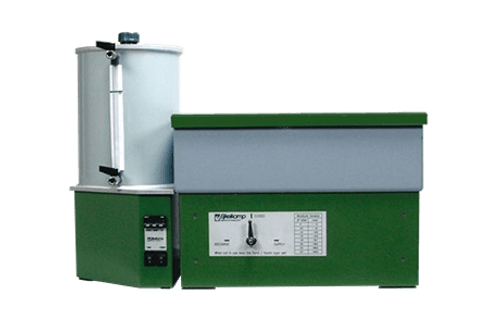

The Sand / Kaolin Box for PF Determination (PF 2.0-2.7) is a green and grey laboratory device with a control panel, dials, and a side cylindrical container, designed for scientific use and shown against a plain white background.

Sand / Kaolin Box for PF Determination (PF 2.0-2.7)

When researching the quantity of moisture available in the soil for plants and trees to grow, it’s essential to determine the moisture characteristic (or pF-curve). The sand/kaolin box is suitable for a maximum of 40 soil sample rings and uses undisturbed samples of 53 or 60 mm in diameter.

The Sand / Kaolin Box for PF Determination (PF 2.0-2.7) contains:

  • Sand/kaolin box with control panel
  • Electronical suction level control system (pressure range 0 – 600 hPa)
  • Pressure sensor
  • 10 litre tank
  • Containers with synthetic sand
  • Container with kaolin clay
  • Various accessories
Email Us Data Sheet
SKU: 0802SA Categories: ,
Sand / kaolin box for pF determination, suitable for a pF of 2.0 – 2.7. The instrument comes with an electronical suction level control system and can be used for up to 40 soil sample rings. Method according to ISO 11274.
  • Shapes the largest part of the pF curve
  • No use of mercury, thanks to the electronic vacuum pump
  • The large number of samples facilitates effective averaging
  • Sustainable set-up that can be used over and over for years
  • For all types of soil
  • Uses undisturbed soil samples of 53 or 60 mm diameter
  • Soil physical laboratory research
  • pF determination in the lab
  • Irrigation research

The sandbox and the sand/kaolin box can be used together to cover a larger pF-range (0 - 2.7). A filled box will last several years, if it is inundated with water after each test. A copper ring prevents algal growth in the instrument.
