SRS 120 DUO

SRS 120 DUO

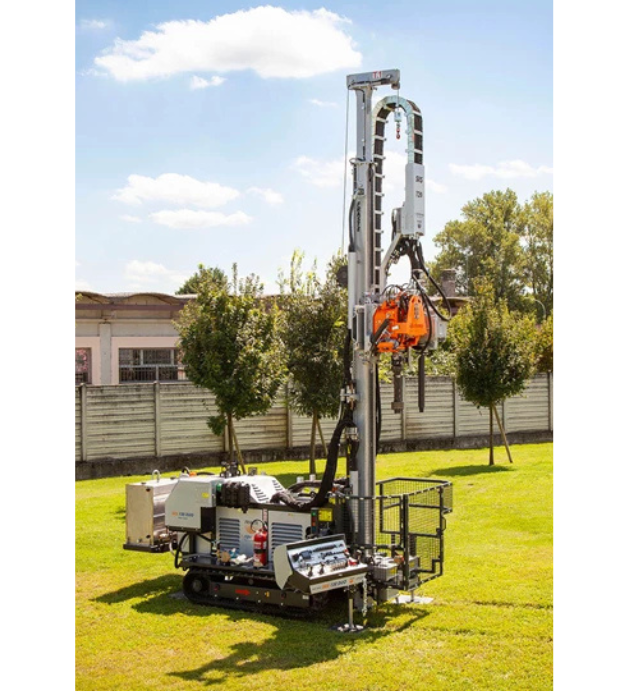

Our SmallRotoSonic 120 DUO sonic rig (SRS 120 DUO) has, in combination with the SmallRotoSonic drill head, a four speed rotation head. It is easy to switch between the sonic drill head and rotary head by shifting the trolleyboard to the left or the right to combine Sonic sampling and diamond core drilling in the same borehole. The SRS 120 DUO delivers True 150 HZ Frequency which makes it really powerful. 

This powerful sonic drill rig is multi-purpose, it can be used for Mineral Sampling, Environmental research, Geotechnical Sampling and Testing, Geo-constructive Drilling and Seismic Drilling. This powerful drilling machine is easy to use and maneuverable. It is available in a Pro and a Royal variant or in a variant with a sonic drill head only. The Data Sheet shows the differences between the machines. We can also tailor a machine to your needs and requirements.

Email Us Data Sheet
Category:
The SRS 120 DUO 34K True 150Hz sonic drilling rig is equipped with a SmallRotoSonic drill head as well as a four speed rotation head. You can easily switch from Sonic drill head to a rotary head by shifting the trolleyboard, which allows you to combine Sonic sampling and diamond core drilling in the same borehole.
  • Small and manoeuvrable rig
  • Equipped with a SmallRotoSonic drill head and a four speed rotation head
  • Easy change between both drill heads
  • Small footprint
  • Tooling diameter between 50-150 millimetre
Pull up force 4.000 daN / 8.992 lbf
Engine 120HP CAT stage 5 engine
Rubber crawler carrier Yes
Radio remote Yes
Drilling mast for 3m/10′ drill rods
Footclamp 40-250 mm double or tripple, with upper floating
Winch Hydraulic 2.000 daN
Bean/ FMC pump L06-18 Yes
High presure waterpump yes
Eijkelkamp Service Assistant Included
