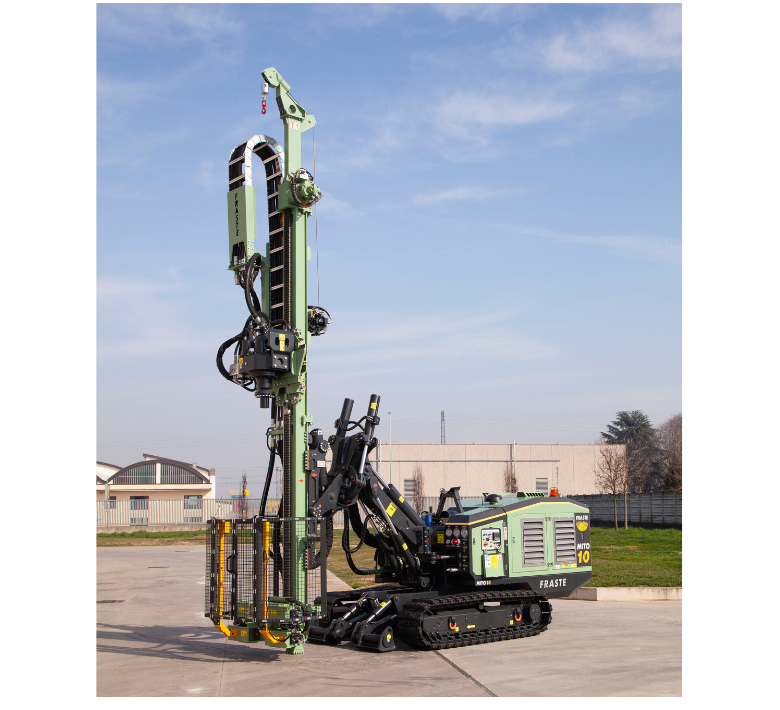

MITO 10
The Fraste MITO 10 utilises either a CAT C4.4 Stage V (148Hp) or a CAT C4.4 Stage IIIA (142Hp) diesel engine with a weight of 9.9 tonnes. The rig has a maximum width of 2200mm, a length of 5700mm and a maximum height of 8668mm, with the jet grouting configuration having a height of 15150mm. These specifications paired with the Fraste articulation system provides excellent manoeuvrability.
The Fraste MITO 10’s CAT C4.4 engine (148Hp) was manufactured to strictly follow Environmental Protective Agency guidelines, having a Tier 4 Final engine, with EU machinery and safety regulations with a Stage V engine, producing low particulate matter (Pm) and nitrous oxide (NOx) emissions. The CAT C4.4 engine (142Hp) has a Stage IIIA and Tier 3 rating, making it less suitable for urban areas due to higher levels of emissions.
The modularity of the Fraste MITO 10 include optional hydraulics and pumps, as well as a high-speed rotary head for coring, jet grouting kit and casing extractors to ensure your specific drilling requirements are met.
The applications of the Fraste MITO 10 include micro piles, tie bars, reinforced columns by jet grouting technique.
