Soil Sample Ring
Price range: £20.00 through £773.00

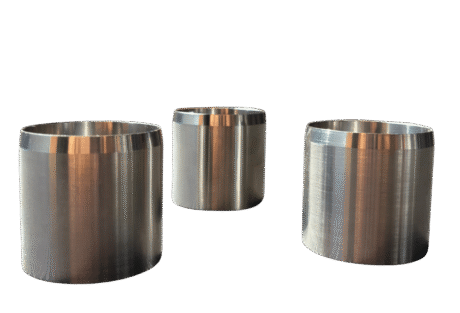

Soil sample rings are stainless steel rings made of seamless tube, which is smooth on both the inside and outside. The bottom of the ring has a cutting edge with an angle of 15°. The sample rings are manufactured to tight tolerances with respect to dimensions, volume, and weight. This makes them highly suitable for collecting samples for laboratory studies.
During sampling, a soil sample ring is forced into the soil, causing it to fill with undisturbed soil
These samples are used, for example, to determine the moisture content at various moisture tensions (from which a pF-curve can be made).
- 53 & 60mm diameter
- Also available for purchase in a case with 24 & 20 units, respectively (two protective caps per ring included)

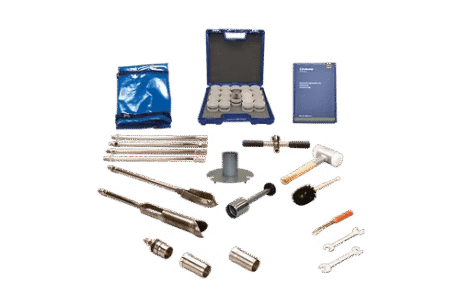

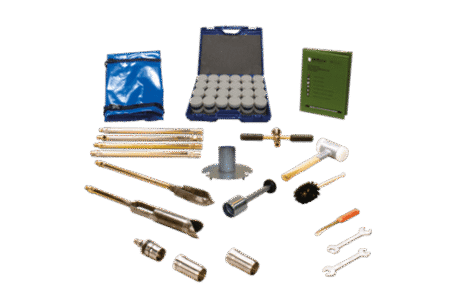

- Cases are used in our soil sample ring sets
- Stainless steel
- Lids are available to properly secure soil samples – Protective Caps
- The water permeability
- The air permeability
- The weight by volume
- The density
- The soil-water-air ratio at field capacity
- The pore distribution
- The oxygen diffusion
- The soil sample rings can be easily and rapidly fitted and removed
- The samples can be taken from the surface, from the bottom of auger holes or from soil profile pits
